Design And Characteristics
Pressure Relief Valve (A), Anti‑Vacuum Valve (B), can be changed according to your requirement.
Gasket: Silicone / EPDM / NBR / FPM, in accordance with FDA 177.2600.
Material: 304(1.4301), 316L(1.4404)
Internal surface: 0.4μm‑0.8μm
Outside surface: Mirror polished, Matte, sand‑blasting finished

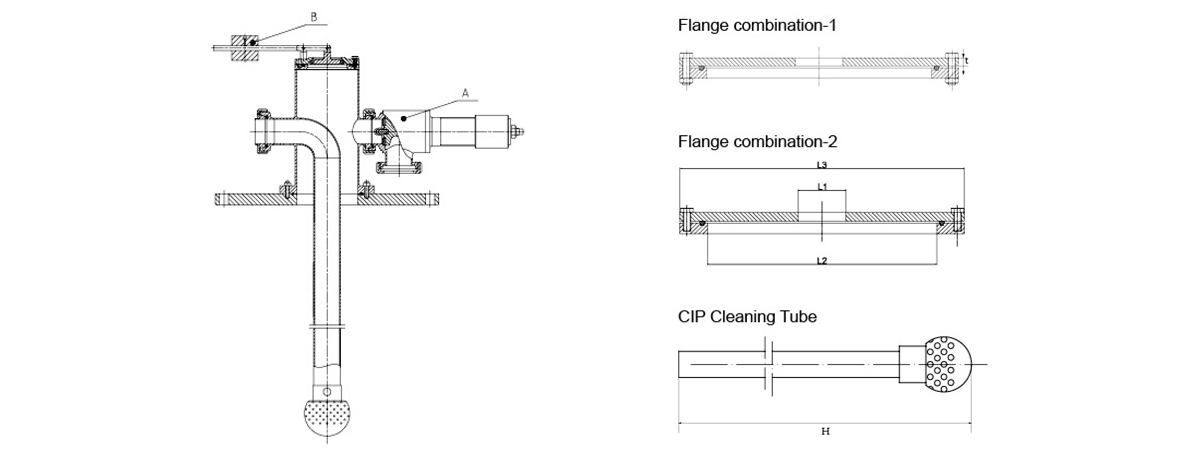

Technical Details
| Size |
A |
B |
L1 |
L2 |
L3 |
T |
H |
| Ф500 |
DN50 |
DN50 |
100 |
500 |
600 |
20 |
1200 |
| Ф500A |
DN50 |
DN50 |
100 |
500 |
620 |
20 |
1200 |
| Ф600 |
DN50 |
DN50 |
125 |
600 |
700 |
20 |
1200 |
| Ф600A |
DN50 |
DN50 |
125 |
600 |
720 |
22 |
1200 |
| Ф600B |
DN50 |
DN50 |
125 |
600 |
750 |
24 |
1200 |
Height（H） and thickness can be changed according to request of customers.
