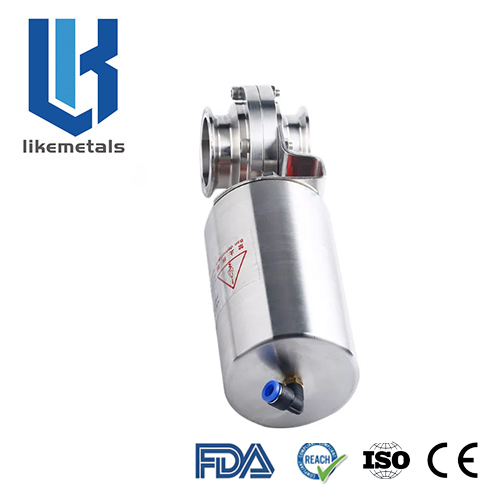

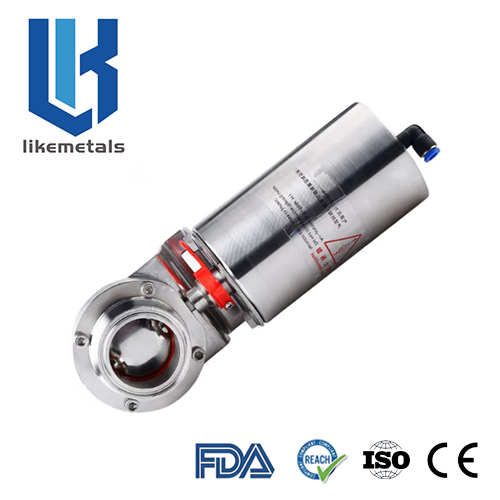

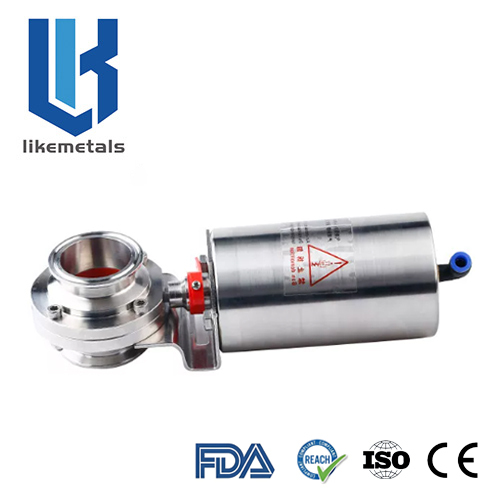

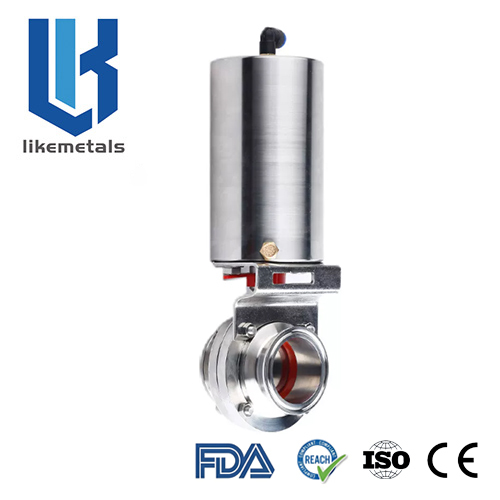

Stainless Steel Pneumatic Tri‑clamp Butterfly Valve feature a full-bore design that enables full fluid flow with minimal pressure drop, making them ideal for handling viscous liquids or liquids containing particles in the food, beverage, chemical and pharmaceutical industries.
Design And Characteristics
Product name:Sanitary Stainless Steel Pneumatic Tri‑clamp Butterfly Valve
Connections:Triclamp,NPT,Weld,Pin
Gasket:Silicone,EPDM,NBR,FPM
Outer Surf:Matte,Mirror-polished,Sand-blasting Finished

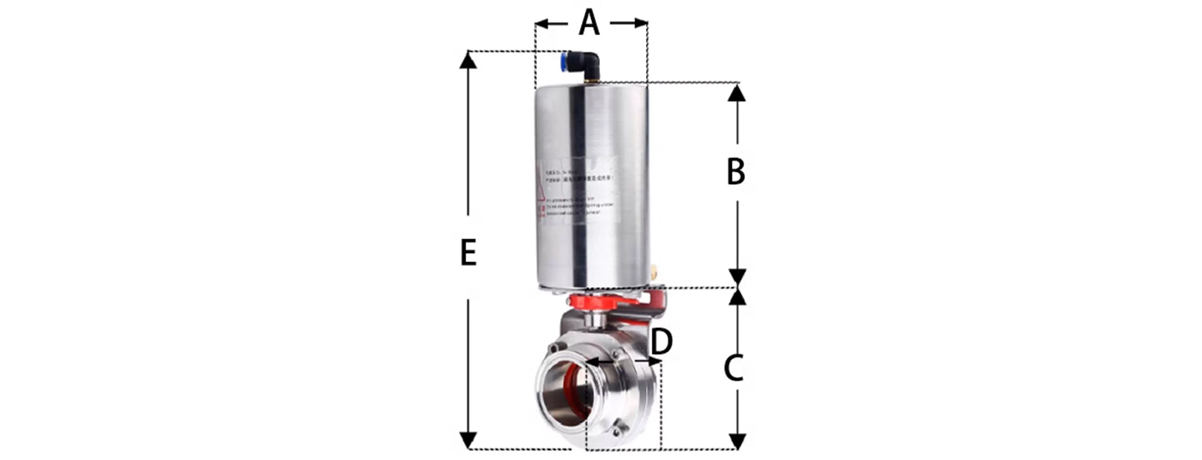

Technical Details
| Size |
A |
B |
C |
D |
E |
KG |
| Φ19 |
85 |
148 |
110 |
66 |
283 |
4.92 |
| Φ25 |
85 |
148 |
110 |
66 |
283 |
4.1 |
| Φ51 |
85 |
148 |
124 |
66 |
297 |
4.84 |
| Φ76 |
85 |
148 |
155 |
76 |
328 |
5.12 |
| Φ89 |
85 |
148 |
176 |
80 |
349 |
5.5 |
| Φ102 |
85 |
148 |
185 |
86 |
358 |
6.18 |
Height（H） and thickness can be changed according to request of customers.
