Design And Characteristics
Outward opening manways cover
Spanner type handle,hand wheel handle
Material:Q235B/SS304/SS316L
Gasket:Silicone,EPDM,NBR,FPM
Inner Surf:Ra 0.05μm-0.5μm
Outer Surf:Matte,Mirror-polished,Sand-blasting Finished

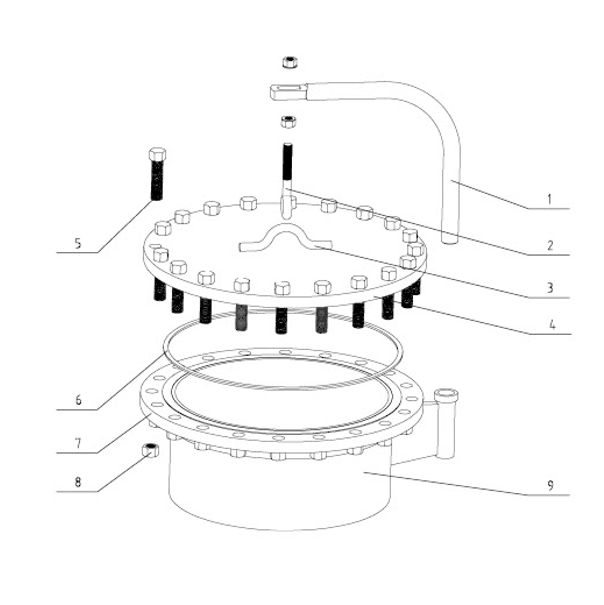

Technical Details
| Item |
Description |
Material |
| 1 |
Jib |
Q235B/
SS304/SS316L |
| 2 |
Lifting Hook |
Q235B/
SS304/SS316L |
| 3 |
Lifting Ring |
Q235B/
SS304/SS316L |
| 4 |
Flange cover |
Q235B/
SS304/SS316L |
| 5 |
Bolt |
35CrMoA |
| 6 |
Sealing Ring |
Non-metallicflat gasket |
| 7 |
Flange |
Q235B/
SS304/SS316L |
| 8 |
Nut |
30CrMoA |
| 9 |
Tube Section |
Q235B/
SS304/SS316L |
*Gasket Material Option：Silicon, EPDM,FPM per FDA

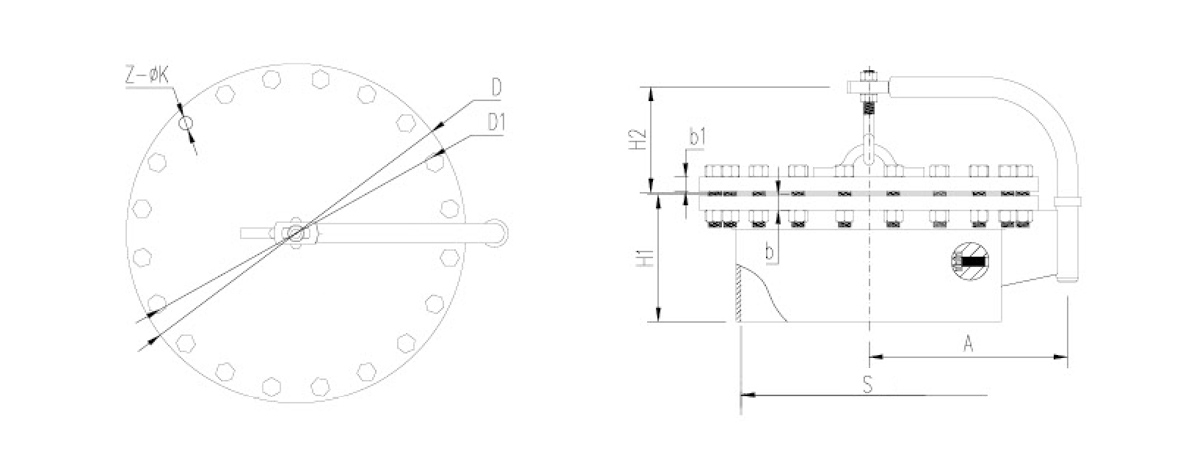

Technical Details
| Size |
S |
D |
D1 |
A |
H1 |
H2 |
b |
b1 |
Z |
| Ф450 |
480×8 |
615 |
656 |
355 |
290 |
198 |
28 |
26 |
20×Ф26 |
| Ф500 |
530×10 |
715 |
650 |
405 |
320 |
214 |
44 |
42 |
20×Ф32 |
| Ф600 |
630×10 |
840 |
770 |
470 |
340 |
224 |
54 |
52 |
20×Ф35 |
Height（H） and thickness can be changed according to request of customers.

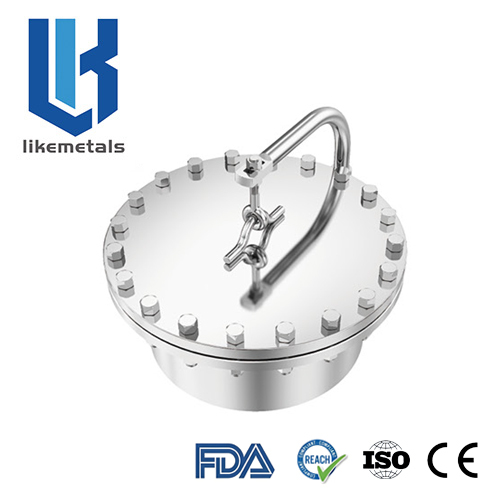

Product Display
